Description
With its powerful design, the A2A was made to deliver rock-solid, superior sound. This impressive AV receiver will completely transform your home cinema with professional-quality audio and video.

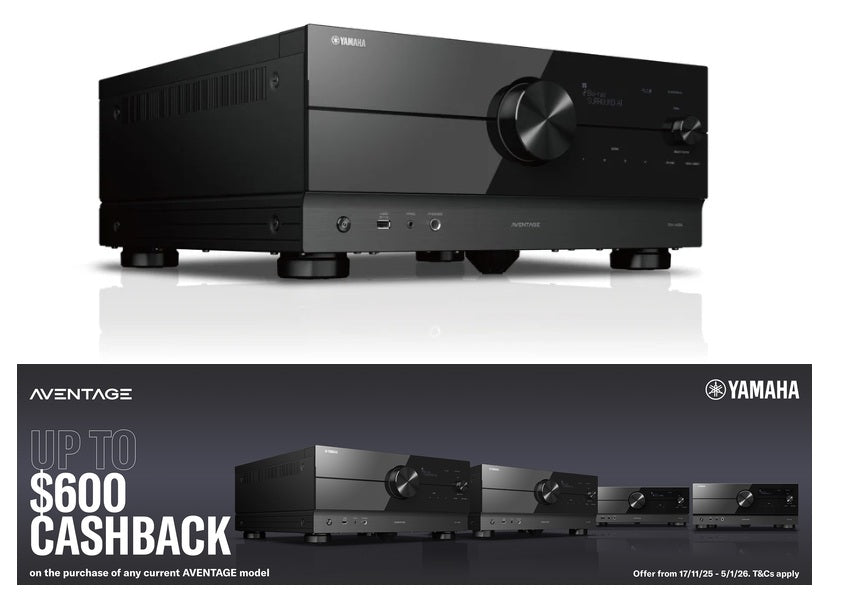

A2A - 7.2 ch AVENTAGE with CINEMA DSP 3D, HDMI™ 7-in/1-out, Special A.R.T technology.
- 7.2 Channel powerful surround sound with Zone2
- Wi-Fi, Bluetooth®, Airplay 2, Spotify Connect and MusicCast multi-room audio
- Dolby Atmos® with height virtualization
- HDMI™ 7 in/1 out, HDR10+, Dolby Vision
- Dedicated gaming function (ALLM, VRR)
- Voice control with Alexa and Google Assistant devices. *Availability varies by region
- MusicCast Surround capable - add MusicCast 20 or MusicCast 50 speakers to create wireless surround sound
- YPAO™-R.S.C. (Reflected Sound Control) sound optimisation
BREATHTAKING SOUND
Dolby Atmos® with Height Virtualizer
Puts you at the center of the action by positioning sounds to different points in your room, including from above.
High Slew Rate Amplifier
Responds to rapid changes of input level for precise and stable signal transmission.
Crafted for Clarity
Anti Resonance Technology (A.R.T.), a fifth foot in the center of the unit, provides additional stability from external vibrations. Enjoy crystal clear, solid sound.
MOVIES AND GAMES LIKE NEVER BEFORE
4K/120Hz
Enables a higher refresh rate, giving you a smoother and more realistic viewing experience.
HDR10+
Provides deeper contrast and more realistic images that stay true to the creators' intent.
Gaming-dedicated Functions (ALLM, VRR)
Ensures seamless motion and transitions to enhance your performance.
HDMI multiple Input with latest technology*
Multiple HDMI input will equally support the latest HDMI technology to allow next-gen gaming consoles can be connected at the same time.
SIMPLE TO SET UP, SIMPLE TO USE
MusicCast App
Explore the power of multi-room audio, access your sources and streaming devices, and control your AV receiver, all through your smartphone.
Voice Control
Works with Alexa and Google Assistant, so your AV receiver is always at your command. Through AirPlay 2, you can stream your music via voice control operation Siri from Apple iOS device. *Availability varies by region.
AV Setup Guide App
Offers expert guidance through installation, cable connections, and various other settings.
DESIGNED FOR YOUR SPACE
YPAO™ R.S.C/Multi-Point
Calibrates sound to your room by analyzing room acoustics and measuring speaker characteristics. This feature also optimizes sound parameters for maximum performance from CINEMA DSP, Dolby Atmos®, DTS:X®.
Compatible with Wireless Rear Speaker
Gives you the freedom to arrange your rear speakers wirelessly to suit your home décor.
Dynamic and Compelling Design
Classic Yamaha craftsmanship meets cutting-edge design. Every piece has been carefully crafted to ensure this AV receiver looks and sounds perfect in your home.
Specifications
Amplifier Section
Channel: 7.2
Rated Output Power (1kHz, 1ch driven): 125 W (8 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven): 100 W (8 ohms, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven): 150 W (8 ohms, 10% THD)
High Slew Rate: Yes
Surround Sound Processing
CINEMA DSP: Yes (3D)
DSP Programs: 17
Dialogue Level Adjustment: Yes
Virtual Presence Speaker: Yes
Virtual Surround Back Speaker: Yes
Dialogue Lift: Yes (no presence speakers required)
SILENT CINEMA / Virtual CINEMA DSP: Yes (Virtual CINEMA FRONT)
Dolby Atmos: Yes
Dolby TrueHD: Yes
Dolby Digital Plus: Yes
Dolby Surround: Yes
DTS:X: Yes
DTS-HD Master Audio: Yes
Audio Features
File Format: MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz
Pure Direct: Yes
Compressed Music Enhancer: Yes (incl. enhancer for Bluetooth®)
YPAO sound optimization: Yes (R.S.C)
YPAO Volume: Yes
Adaptive DRC (Dynamic Range Control): Yes
Initial Volume & Maximum Volume Setting: Yes
A.R.T. Wedge: Yes
Bi-amp capability: Yes
Audio Delay: Yes (0-500 ms)
DA Converter: 384 kHz / 32-bit BurrBrown PCM5102A
Video Features
HDMI eARC: Yes
HDMI Audio Return Channel: Yes
HDMI Pass-through: 8K60B, 4K120AB (via future update)*HDMI 1-3
HDMI Up-scaling: Yes up to 4K
4K Support: 4K@60 / 4k@120AB
HDR Support: HDR10/HDR10+/Dolby Vision/HLG
HDMI 2.1 Features: VRR/QMS/ALLM/QFT
Connectivity
MusicCast Surround: Yes
MusicCast Multi-room: Yes
HDMI Input/Output: 7 / 1
HDMI CEC: Yes
USB Input: Yes
Network Port: Yes
Wi-Fi: Yes (2.4 / 5 GHz)
AirPlay2: Yes
Bluetooth: Yes (SBC / AAC)
Front AV Input: USB
Digital Audio Input/Output: Optical: 1 / 0
Digital Audio Input/Output: Coaxial: 1 / 0
Analog Audio Input/Output: 4 / 0
Phono Input: Yes
Preout: 2.2-ch
Headphone Output: 1
Streaming Services: Spotify/Tidal/Deezer/Amazon Music/Net Radio
Voice Control Services: Amazon Alexa/Google Assistant
Network Control Protocol: YXC (MC Control)
3rd Party Control (With Drivers): Control 4/RTI/ELAN
Other
OSD/GUI: OSD (Overlay)
YPAO Automatic Calibration: Yes (R.S.C/Multi-Point)
Radio Tuner: DAB+/FM
User Interface
On-screen display: Graphical User Interface
SCENE: SCENE (8 sets)
App Control: Yes (iPhone / iPad / Android phone / tablet)
Web Browser Control: Yes
Remote Control Unit: Yes
Zone Control
Zone 2 Audio Output: Preout
Powered Zone: Zone 2
+12V Trigger Output: 1
Remote (IR) Input/Output: 1 / 1
Party Mode: Yes
General
Standby Power Consumption (IR only): 0.1 W
Auto Power Standby: Yes
ECO mode: Yes
Dimensions (W x H x D): 435 x 171 x 372 mm (with antenna up: 435 x 245 x 372 mm)
Weight: 10.2 kg
