Rel Acoustics

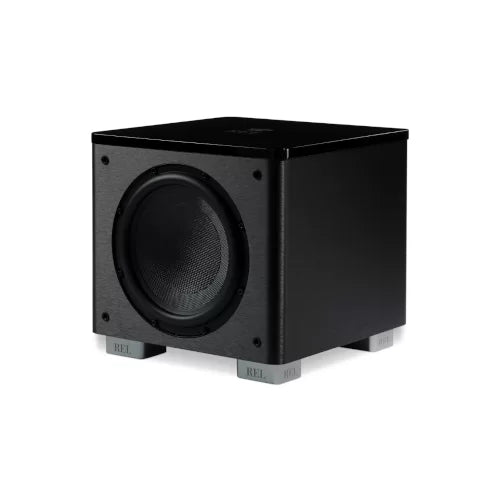

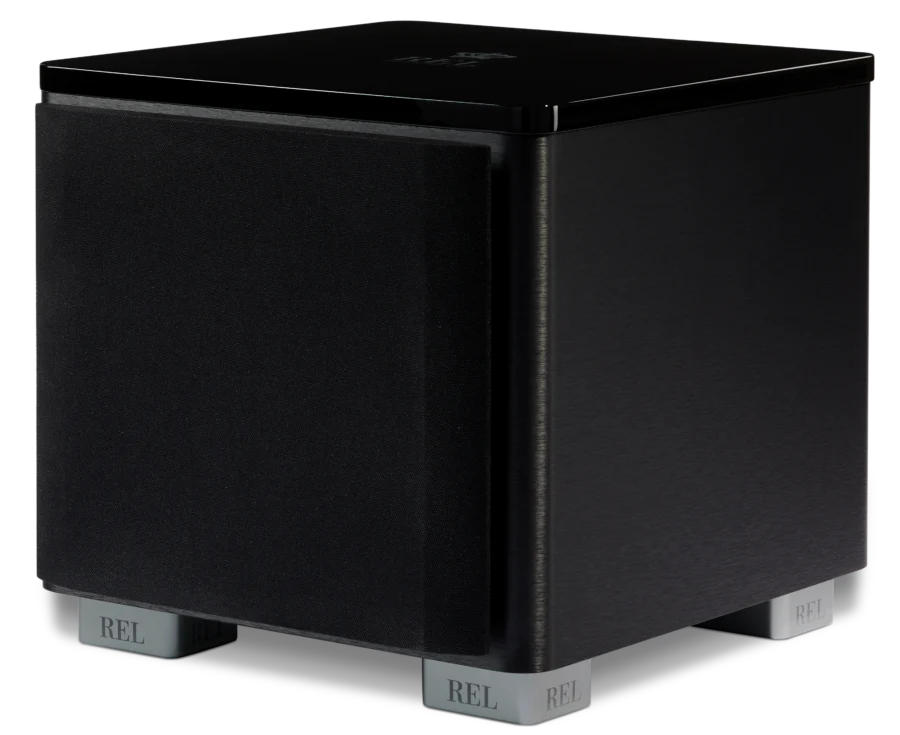

REL HT 1003 MK II Subwoofer

$1,599.00
  • REL HT 1003 MK II Subwoofer
  • REL HT 1003 MK II Subwoofer
  • REL HT 1003 MK II Subwoofer
  • REL HT 1003 MK II Subwoofer
  • REL HT 1003 MK II Subwoofer

Free shipping Australia-wide for orders over $500


Putting together a custom system? Click 'Add to quote' below, add any other products you’re interested in, and get a customised quote.

The HT/1003 MKII packs massive power in a sleek, compact design—playing TWICE as loud as the original. Earth-shaking performance at an unbeatable value.

  • 300-Watt Class D Amplifier
  • 10" CarbonGlas™ Driver
  • Body is finished with a line-grained composite
  • Home Theatre Ready

Designer Clothing

The sexy new cabinetry is bespoke, with new textures, proportions, and finishing touches previously unseen in the category. Lower, sleeker cabinetry borrows proportions drawn from our new Reference models. Through experimentation over the years, we have found that this results in a faster, deeper presentation of bass—all while looking smashing. The eye is immediately drawn to the top panel, which is finished in 5 coats of hand-polished piano black lacquer. A discreet REL logo floats within the top layer of lacquer, whilst the body of the cabinet is clad in horizontally streaked, line-grained composite. The entire affair looks expensive, bespoke, and tastefully restrained. Also, it can be combined with either Serie T/x or Serie S in large, fully-immersive REL HT/3D™ setups.*

Drive Like You Mean It

HT/1003 MKII’s driver remains a 10” (250mm) CarbonGlas™ construct to keep its overall size reasonable in its role as the powerhouse for slightly more modest spaces. Every component was beefed up—improved in ways both large and small to deliver the greatest performance possible. Lightweight, stiff, and quiet, the combination of glass fibre primary cones with true carbon fibre centre caps results in a cost-effective yet pistonic cone. Larger, more powerful magnets produce greater energy. Upgraded suspension designs with enlarged surround to permit greater travel means output remains under control all the way to the limits of amplifier and driver. The result is prodigious output for this price point while remaining fast and liquid, as do all RELs.

Amplified Excellence

Amplifiers do the dirty work and the heavy lifting in a theatre subwoofer. We turned to a true Tier One amp supplier to build our latest design for us; they didn’t disappoint. They created thicker boards, and upgraded power supplies—all the stuff that, while not sexy, results in a brutally powerful 300W amp (did you know all RELs are specified as RMS Continuous, just like a big, expensive 300 W monoblock amp?) with remarkable longevity. It generates truly awe-inspiring sound. While its theatre applications get all the headlines, its big secret is that it sounds sublime in musical applications. Big and robust-sounding, the HT/1003 MKII is sure to become an instant classic.

PerfectFilters™: Where Perfection Starts

REL input filters are renowned throughout the audio world. They bring together ultra-fast analogue crossovers, customer-designed elevation filters that extend the flatness of deep bass, and integrated limiters that allow all the power to explode outward. This compact series of analogue circuits is REL’s secret recipe in both music and film sound. Refined in this second generation, the secondary filters used now allow extension to a much higher frequency, allowing the rarefaction of air in the sound of an explosion to feel that much more realistic. Additionally, our latest circuit includes an all-analogue subsonic filter that begins as low as 12 Hz to minimize the effects of infra-noise from soundtracks that extends well below the resonance point of the driver. The result is incredible delivered power with the ability to play to the driver’s limit without distortion.

Technical Specifications

Type

Closed box, front-firing driver

Active Driver Size & Material

10 in. (250mm) long-throw, CarbonGlas™ cone structure, inverted carbon fibre centre cap, steel chassis

Passive Radiator Size & Material

NA

Low Frequency Extension

-6dB at 24 Hz Low Frequency

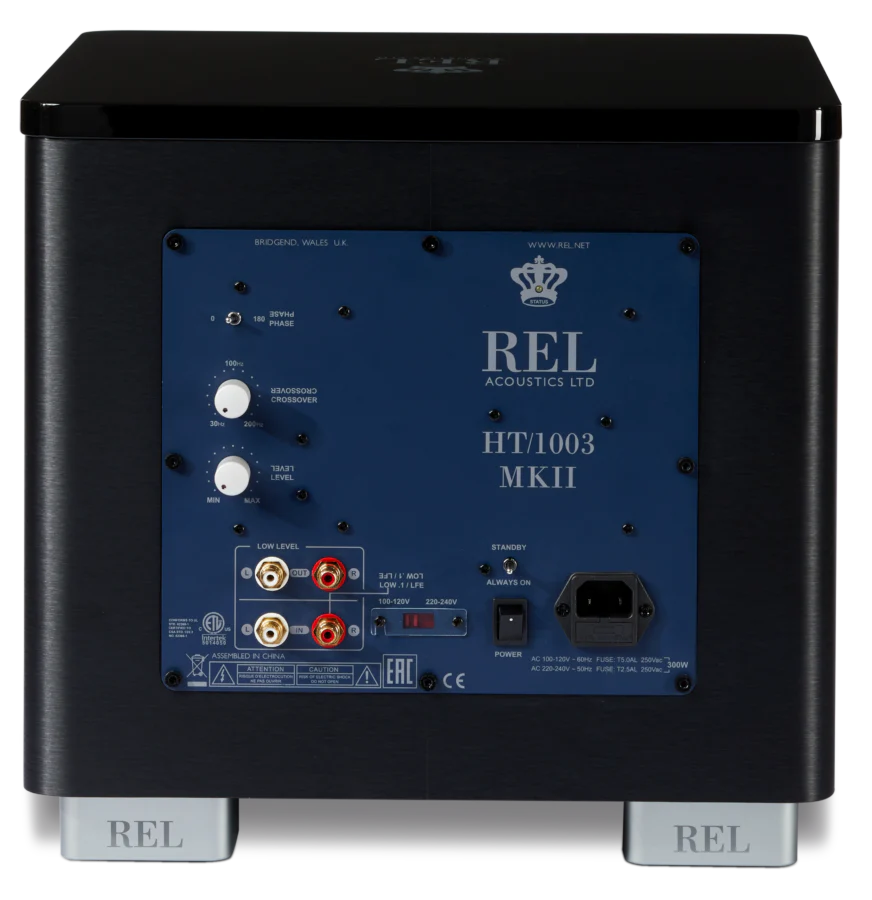

Input Connectors

(2) Low Level RCA or (1) LFE RCA

Output Connectors

Daisy Chain (2) Low Level RCA or (1) LFE RCA

Power Output

300 watts (RMS)

Amplifier Type

Class D

Wireless Capability

HT- Air MKII (sold separately)

Dual Parametric Filter

N/A

Finish

Horizontally Oriented Line Grained Composite, 15 mm Top Plate, finished in 5 coats of hand-rubbed high gloss lacquer

Protection System

Fully Electronic Set Safe

Yes

D.C. Fault

Yes

Output Short

Yes

Mains Input Voltage

220-240 volts, 110-120 volts for certain markets

Fuses

6.3 Amp semi delay 230 or 115 volts operation

Supplied Accessories

Mains Lead

Yes

Neutrik Speakon

NA

Interconnect

No

User Manual

Yes
