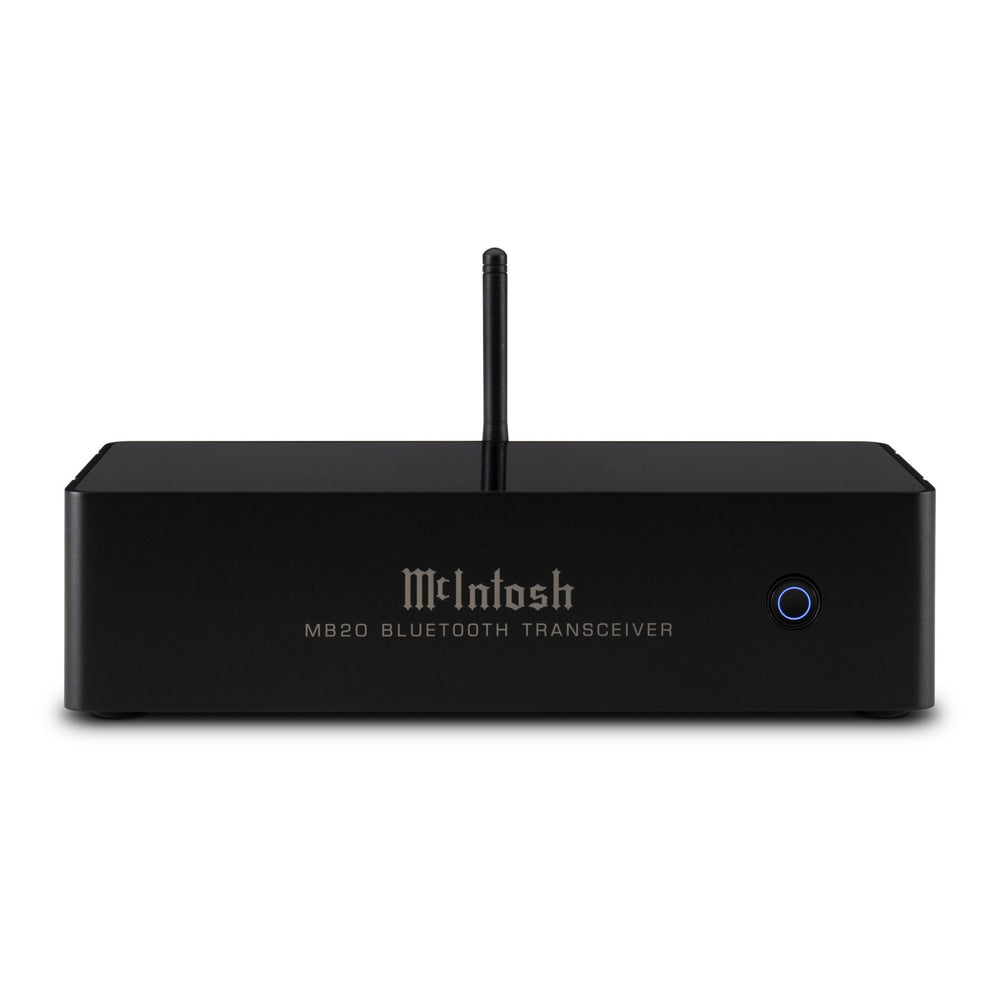

As a transmitter/receiver, the MB20 has been designed to provide a superior Bluetooth connection to audio equipment that lacks Bluetooth connectivity. As such, it has been engineered as a Class 1 Bluetooth device. Class 1 devices can typically operate at a range of up to 150 feet (45.7 meters)1 in ideal conditions with limited obstructions. As a Receiver, the MB20 employs an extremely sensitive receiver for better reception, even from Class 2 devices, with the maximum range determined by the capabilities of both actively paired devices. An external antenna helps maximize its range for better performance. As a Transmitter, it has a range 10x greater than that of a typical Class 2 Bluetooth device.
Supports AAC and aptX HD; 32-bit / 192kHz DAC.
Use 2 units as a wireless bridge between 2 systems.

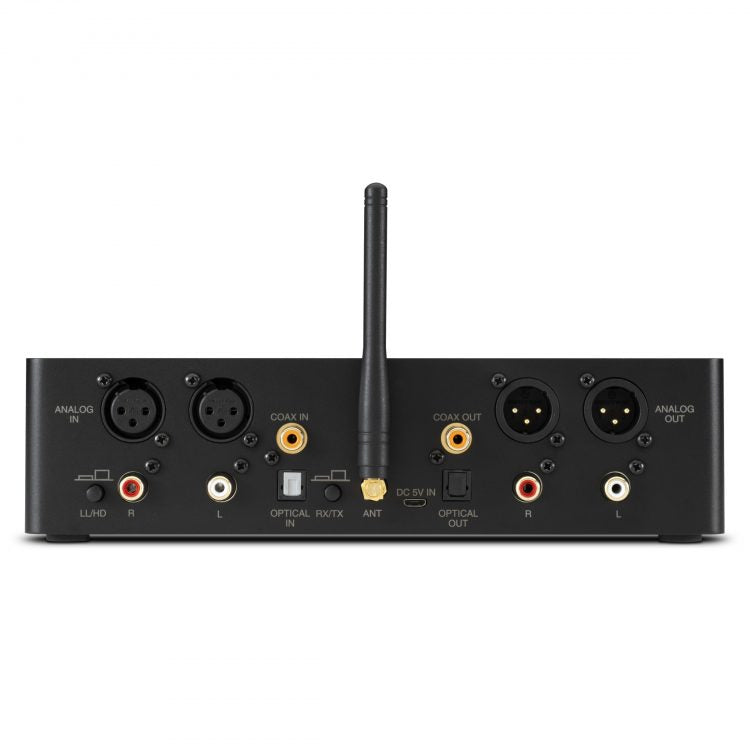

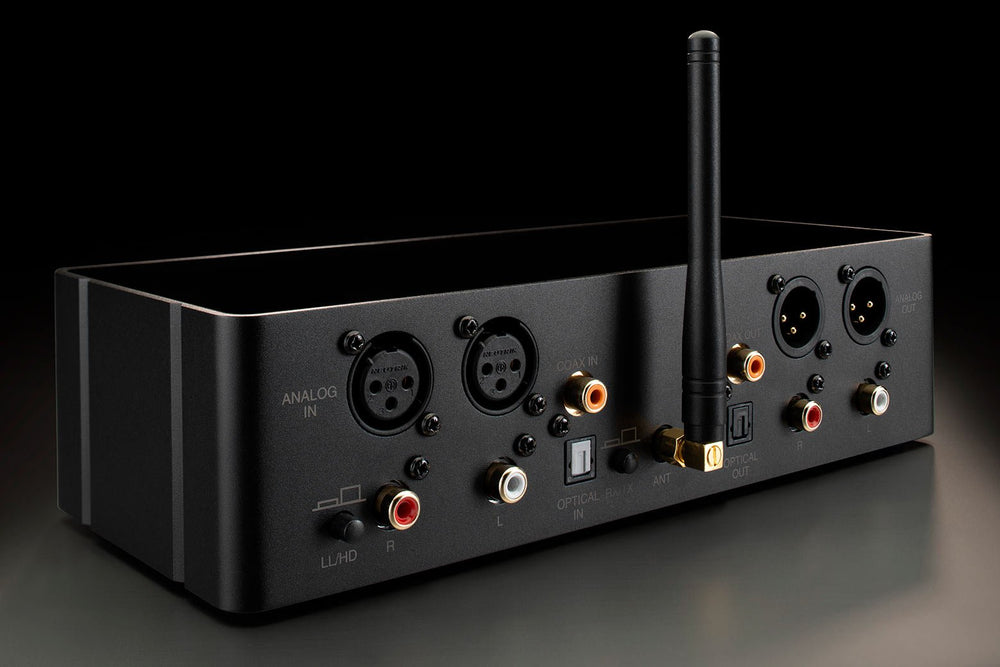

Balanced & unbalanced in/out; optical & coax in/out
Specifications
-
- Total Harmonic Distortion
- < 0.005%
-
- Frequency Response
- +/-0.5dB from 20Hz to 20,000Hz
-
- Maximum Volts Out (Balanced / Unbalanced)
- 5/2.5 V RMS
-
- Signal To Noise Ratio
- > 100dB
-
- Output Impedance
- Minimum load 500 Ohms
-
- Dynamic Range
- N/A
CONNECTIVITY
-
- Balanced Input
- 1
-
- Balanced Output
- 1
-
- Unbalanced Input
- 1
-
- Unbalanced Output
- 1
-
- Digital Coaxial Input
- 1
-
- Digital Coaxial Output
- 1
-
- Digital Optical Input
- 1
-
- Digital Optical Output
- 1
-
- Digital USB Input
- 0
-
- Digital USB Audio Output
- 0
-
- Network Connection
- Bluetooth
-
- DVI Output
- 0
-
- HDMI Output
- 0
-
- VGA Output
- 0
-
- eSata Input
- 0
DIGITAL AUDIO SPECIFICATIONS
-
- Digital Input Format
- PCM
-
- Digital Input Sample Rate
- Up to 24-Bit/192kHz
-
- Digital Output Format
- 24-Bit/96kHz
-
- Digital Output Sample Rate
- 96kHz
CONTROL
-
- Power Control Input
- 0
-
- Power Control Output
- 0
-
- Rear Panel Data Input
- 0
-
- Rear Panel IR Sensor Input
- 0
WEIGHTS & DIMENSIONS
-
- Unit Dimensions (W x H x D)
- 9-29/64″ (24cm) x 2-1/2″ (6.35cm) (antenna in upright position adds additional 1-3/8″ (3.43cm) x 3-15/16″ (10.01cm)
-
- Unit Weight
- 2.5 lbs (1.2kg)
-
- Shipping Weight
- 3.5 lbs (1.6kg)
