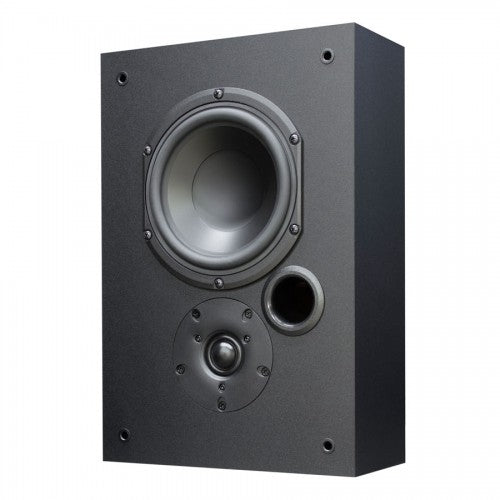

Phonix Flat delivers all-encompassing cinema sound in a slim, flat baffle design, ideal for side surround, rear surround, or ceiling effect applications.
- Perfect for 5.1, 7.1, or Dolby® Atmos™ configurations, offering high power handling and low-frequency extension down to 45Hz in a compact 132mm deep package.
- Features a 165mm bass driver with a 33mm voice coil, ventilated spider, and aluminium flux stabilisation ring for low distortion and smooth, dynamic response.
- Equipped with a 26mm specially-damped, high-power doped fabric dome tweeter for controlled, clear high frequencies.
- Professional-grade crossover network ensures exceptionally smooth and well-controlled sound.

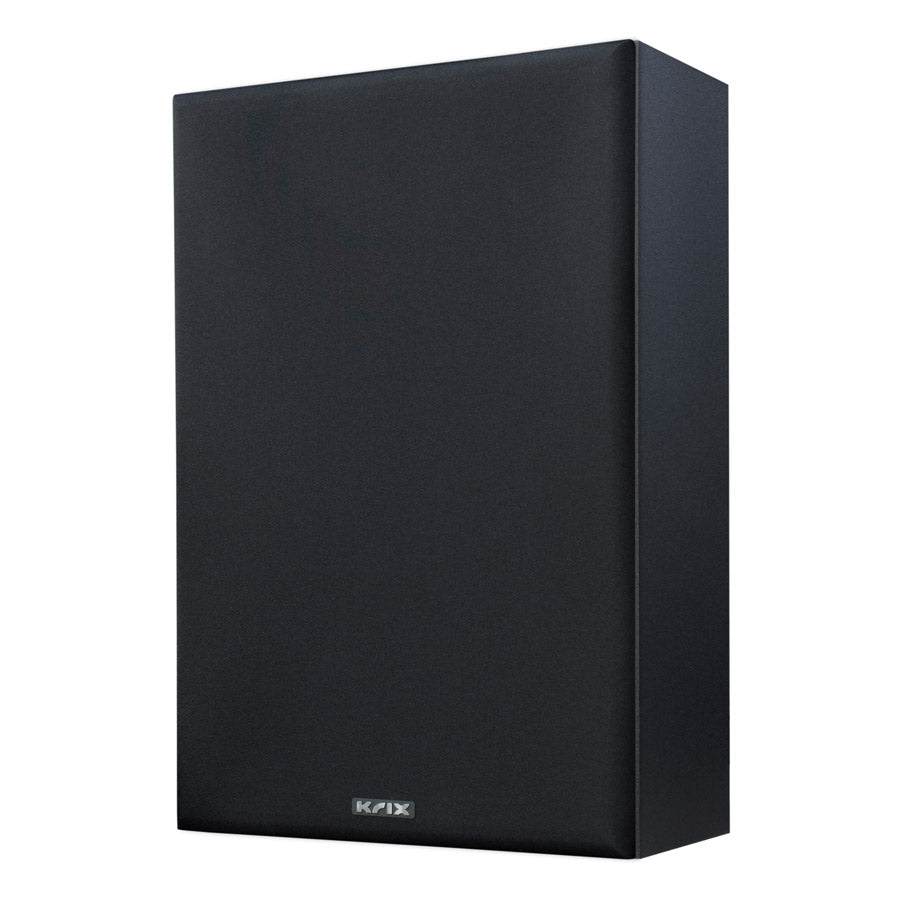

- Comes with a braced, critically-damped enclosure, a black cloth grille, and an optional low-profile mounting bracket for wall or ceiling mounting.
- Offers a versatile and neat solution for surround sound reproduction, setting a new benchmark for home cinema systems.
Specifications
Frequency range
45Hz-20kHz in room response
Power handling
50-150 Watts RMS recommended amplifier power
Sensitivity
88dB for 2.83 volts at 1 metre
Impedance
8 Ohms
Configuration
2-way
Enclosure type
Bass reflex, front vented
Low frequency driver
Single 165mm (6½”) laminated polypropylene cones. 33mm (1¼”) voice coil wound on high powered aluminium former, with ventilated spider and aluminium flux stabilisation ring for low distortion
High frequency driver
26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooled
Crossover point
1.8kHz
Input terminals
Gold plated binding posts
Dimensions
388mm high x 260mm wide x 132mm deep
Weight
6kg each
