The integration of sophistication and technical evolution. Introducing our innovative Z series.

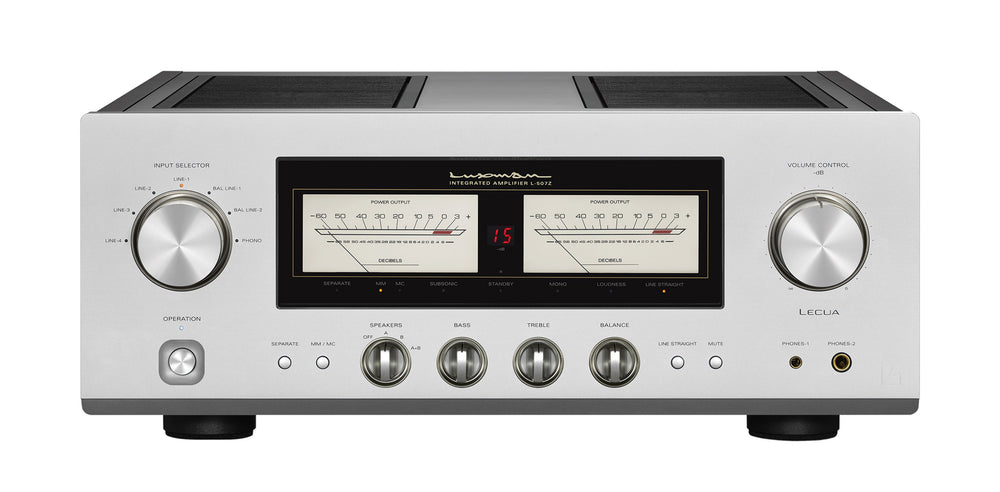

Luxman’s new generation Z series integrated amplifiers. The L-507Z is the debut model heralding our new generation of amplifier products. Featuring our newly developed LIFES amplification feedback engine, we look towards the future of Luxman. This amplifier has realized a dramatic development in musicality that goes far beyond its class. L-507Z combines advanced technology and sophisticated functionality. Our new, innovative Z series integrated amplifier generation begins with this superb model.
Key Features
- Solid State Integrated Amplifier
- Our latest amplification feedback engine brings music to life with LIFES Version 1.0
- Large needle VU level meter and 7-segment LED
- Precision hairline finished aluminum top panel
- High stability power supply
- 110 watts x2 (8Ω) or 220 watts x2 (4Ω)
| Rated output |
110W+110W（8Ω）
220W+220W（4Ω） |

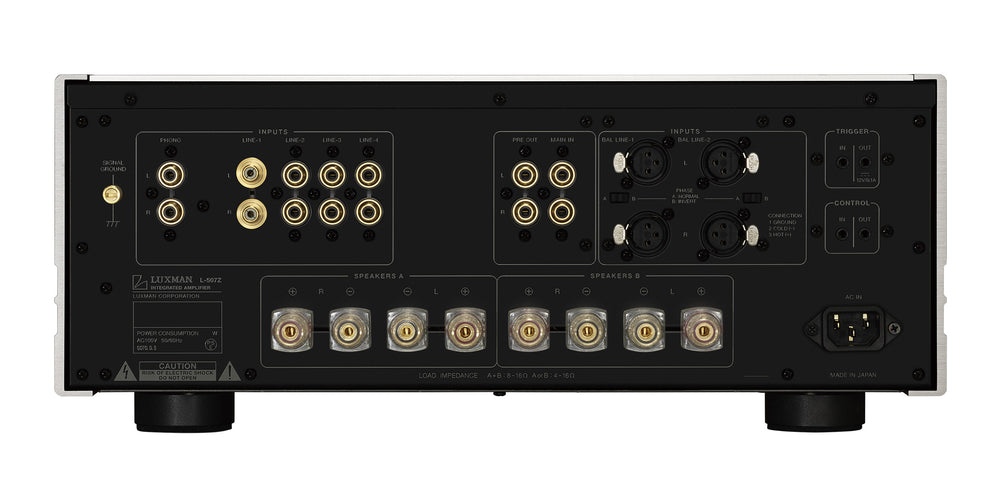

Input sensitivity/
input impedance |
PHONO（MM）: 2.5mV / 47kΩ
PHONO（MC ）： 0.3mV / 100Ω
LINE: 180mV / 47kΩ
BAL.LINE: 180mV / 79kΩ
MAIN IN: 1.05V / 47kΩ |
| Output voltage |
PRE OUT: 1V |
| Frequency response |
PHONO: 20Hz to 20kHz (±0.5dB)
LINE: 20Hz to 100kHz (within -3dB) |
| Total harmonic distortion |
0.007% or less (8Ω, 1kHz)
0.03% or less (8Ω, 20Hz to 20kHz) |
| S/N ratio (IHF-A) |
PHONO (MM): 91dB or more
PHONO (MC): 75dB or more
LINE: 105dB or more |
| Volume adjustment |
New LECUA1000 |
| Amplification feedback circuit |
LIFES 1.0 |
| Output configuration |
Bipolar 3-parallel push-pull |
| Damping factor |
300 |
| Max. amount of tone control |
BASS: ±8dB at 100Hz
TREBLE: ±8dB at 10kHz |
| Power supply |
230V~(50Hz) / 115V~(60Hz) |
| Power consumption |
350W
86W (under no signal), 0.4W (at standby) |
| External dimensions |
440(W) x 178(H) x 454(D) mm
front side knob of 20mm and rear side terminal
of 27mm included in depth |
| Net weight |
25.4kg (main unit) |
| Accessories |
Remote control (RA-17A)
Power cable |
Speaker terminal
Supported Y-lug terminal
dimension |
Width of part a: 15mm or less
Width of part b: 8mm or more
* Connection may not be performed
depending on the shape of the
Y-lug terminal. |
|
