For the biggest in home cinema surround sound, look no further. Effortless power and controlled dispersion mean surround effects will be delivered with stunning accuracy, weight and detail.
Features
-

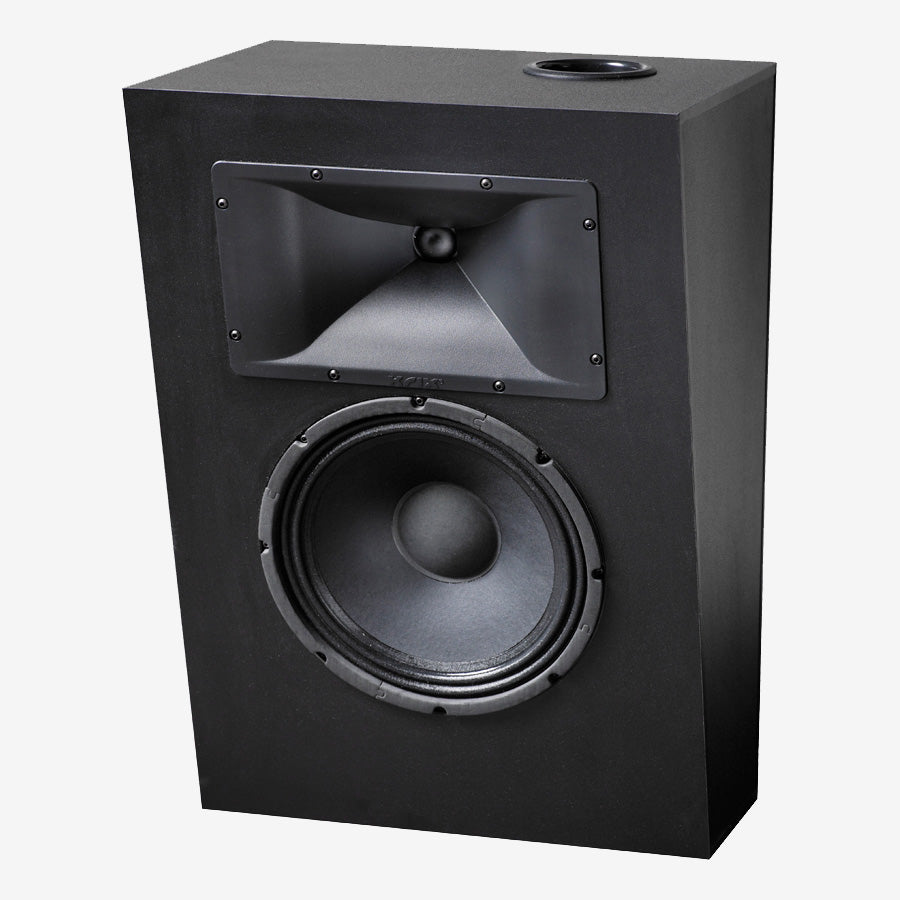

Megaphonix is designed for on-wall use in dedicated home cinemas, providing high power handling and high sensitivity for ultimate cinematic impact.
- Features a 255mm bass driver with a 50mm voice coil for low harmonic distortion, especially in the critical midband, delivering smooth and controlled bass.
- Equipped with a 26mm doped fabric dome tweeter, specially damped for high power, and Krix’s proprietary waveguide ensures optimal dispersion (90° horizontal, 40° vertical) across the frequency range.
- The 15° angled front baffle improves pattern control and ensures consistent audio coverage to all listening positions.
- Enclosures are braced and critically damped to enhance bass extension, and the speaker includes a black material grille and rear key hook mounts for easy installation.
- Part of a five-speaker family, allowing for seamless integration with main or surround speakers for a connected, clear, and smooth sound experience.
- Ideal for rear or side surround placement, offering a superior home cinema sound experience.
Specifications
Frequency range
40Hz-20kHz in room response
Power handling
50-250 Watts RMS recommended amplifier power
Sensitivity
95dB for 2.83 volts at 1 metre
Impedance
8 Ohms
Configuration
2-way
Enclosure type
Bass reflex, top vented
Low frequency driver
Single 255mm (10”) paper cone driver. 50mm (2”) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortion
High frequency driver
26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooled. Coupled to a Krix designed 90 x 40 short throw waveguide
Crossover point
1.8kHz
Input terminals
Nickel plated spring terminals featuring a 5mm hole to accept up to 10AWG cable
Dimensions
560mm high x 390mm wide x 321mm deep at the top (171mm deep at the bottom)
Weight
15kg each
