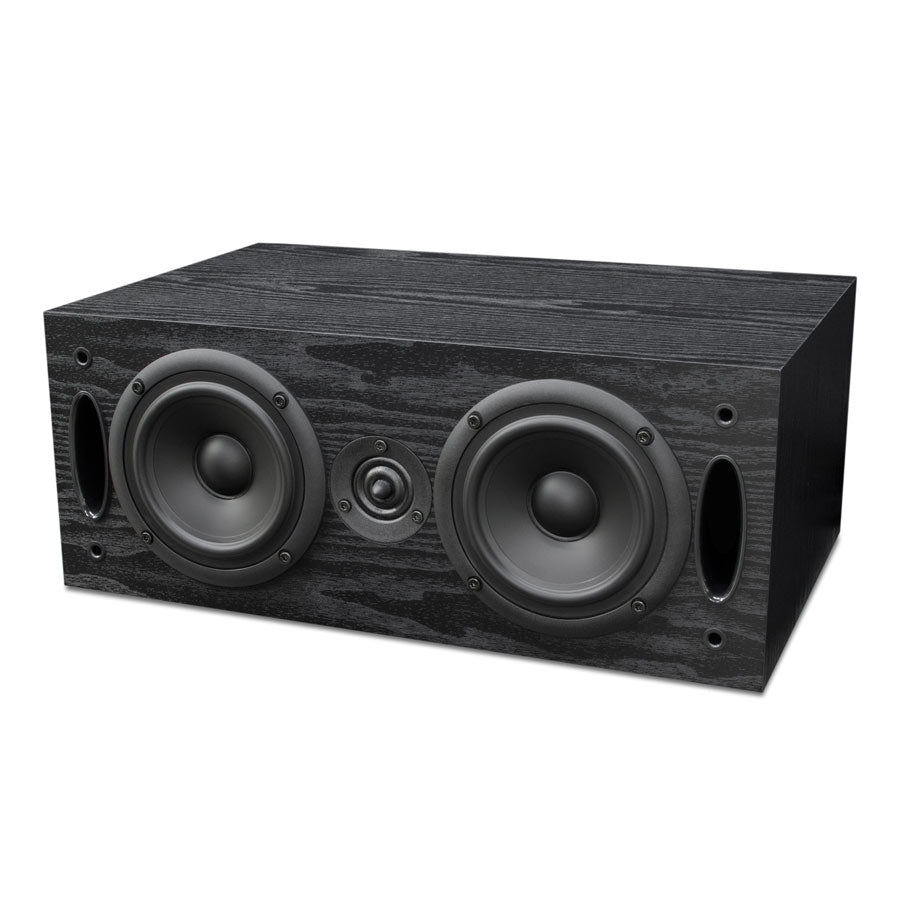

Standard black immitation wood grain, The Graphix centre channel delivers precise timbral matching to the Krix Acoustix Mk2 main speakers. Working together, the speakers produce a seamless, dynamic and acoustically intricate multi-channel surround experience. Dual 130mm bass/mid-range drivers, each with heavy-duty voice coils and a high powered magnet assembly, combine to deliver a powerful bass response. Highs are provided by a 26mm high frequency driver, with a wave-guide centre plug for controlled directivity and improved intelligibility and transparency. A compact centre, also perfectly matched to any of the Krix main speaker range, the Graphix Mk2 gives you the ultimate flexibility to choose a home theatre system that suits your room. Thanks to its dual front firing vents, the Graphix can be placed inside cabinets and AV furniture, eliminating any ‘boomy’ bass resonance.
Frequency range
45Hz-40kHz in room response
Power handling
20 – 160 Watts RMS recommended amplifier power
Sensitivity
89dB for 2.83 volts at 1 metre
Impedance
Nominally 6 Ohms (minimum 4.3 Ohms)
Configuration
D-Appolito, 2-way
Enclosure type
Bass reflex, front vented
Low frequency drivers
Fibre reinforced moulded polymer baskets with 2 x nominal 130mm (5″) doped paper cones. 25mm (1″) voice coil wound on high powered aluminium former, with vented magnet assembly
High frequency driver
26mm (1″) dual concentric diaphragm with wave guide centre plug for controlled directivity. Neodymium magnet
Input terminals
Gold plated binding posts
Dimensions
180mm high x 450mm wide x 300mm deep
Weight
10kg each
