The stunning realism of a high-end floorstanding or centre channel speaker with this uniquely designed in-wall speaker.
- Epix offers high fidelity sound with Krix’s award-winning Neuphonix Mk2 and Epicentrix Mk2 speakers.

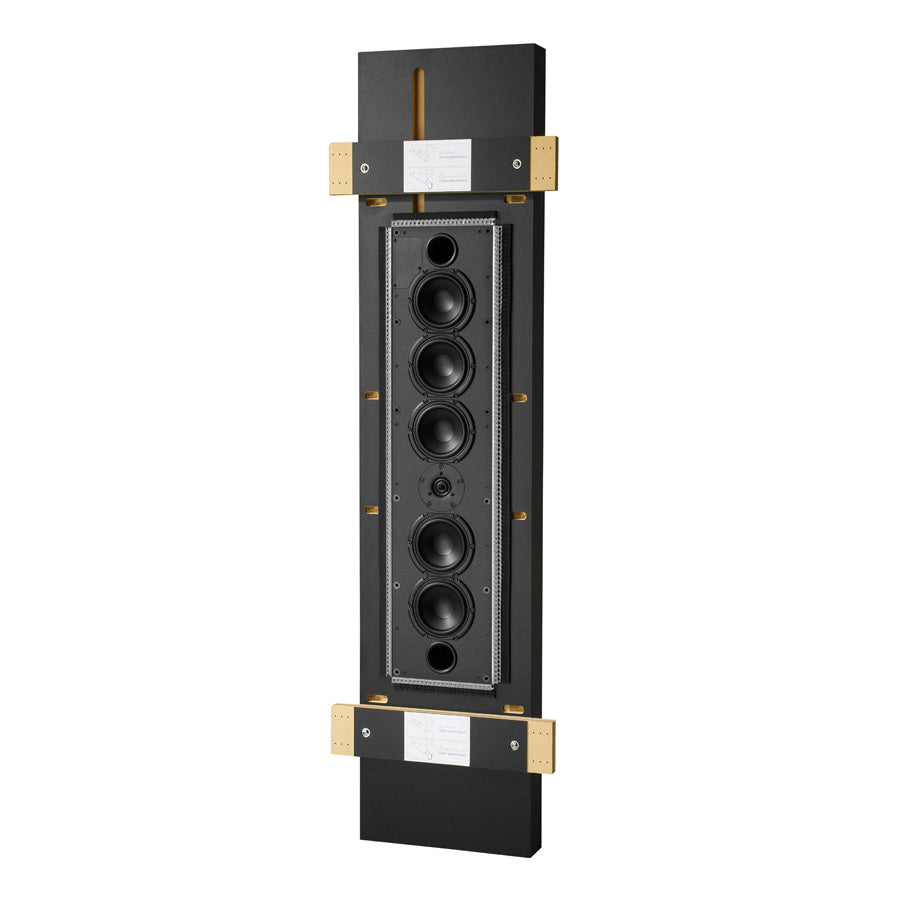

- Designed to fit a standard 90mm frame, providing high-end sound without clutter.

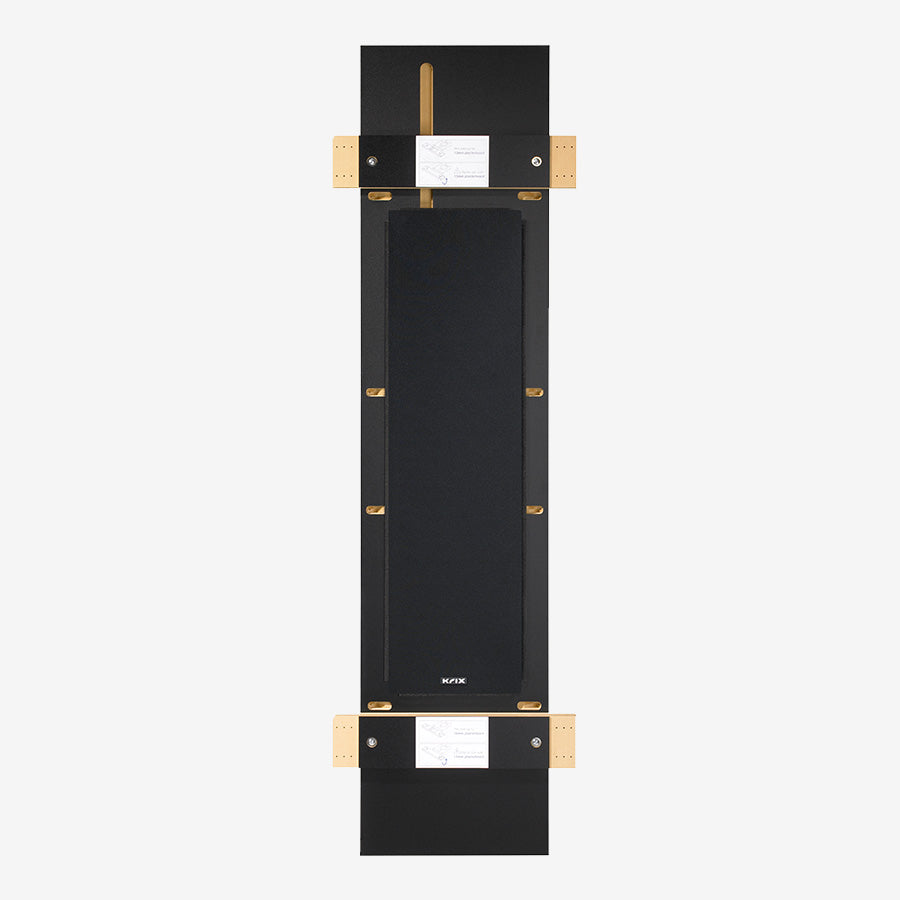

- Fully enclosed back box preserves acoustic integrity and prevents rear sound radiation.
- Ideal for use in home theatre or multi-functional living spaces, in both stereo and surround sound setups.
- 3-way design includes four 130mm bass drivers with oversized magnets.
- Features high-quality components, including a 130mm midrange and a 26mm ring radiator tweeter with a frequency response up to 40kHz.
- Available in vertical or horizontal configurations with mounting hardware and plasterboard edging.
- Installation involves two stages: frame stage installation with a fake baffle, followed by final mounting once the room is finished and dust-free.
- Provides a complete in-wall speaker solution for serious listeners.
Specifications
Frequency range
40Hz-40kHz in room response
Power handling
50 – 300 Watts RMS recommended amplifier power
Sensitivity
90dB for 2.83 volts at 1 metre
Impedance
Nominally 6 Ohms (minimum 4.3 Ohms)
Configuration
3-way
Enclosure type
Bass reflex, front vented
Low frequency drivers
4 x nominal 130mm (5”) coated paper cones. 26mm (1”) voice coil wound on high powered aluminium former provides enhanced linearity. Over-sized magnet delivers low distortion
Mid frequency driver
1 x nominal 130mm (5”) coated paper cone. 26mm (1”) voice coil wound on high powered aluminum former, using copper shorting ring and oversized magnet for low distortion
High frequency driver
26mm (1″) dual concentric diaphragm with wave-guide centre plug for controlled directivity. Non-reflective dual chambered magnet structure with copper shorting ring to lower distortion
Input terminals
Concealed spring terminals
Dimensions
Back box – 1700mm high x 390mm wide x 80mm deepFront baffle – 962mm high x 225mm wide x 18mm deepGrille – 995mm high x 258mm wide x x 13mm deep
Weight
27kg each
