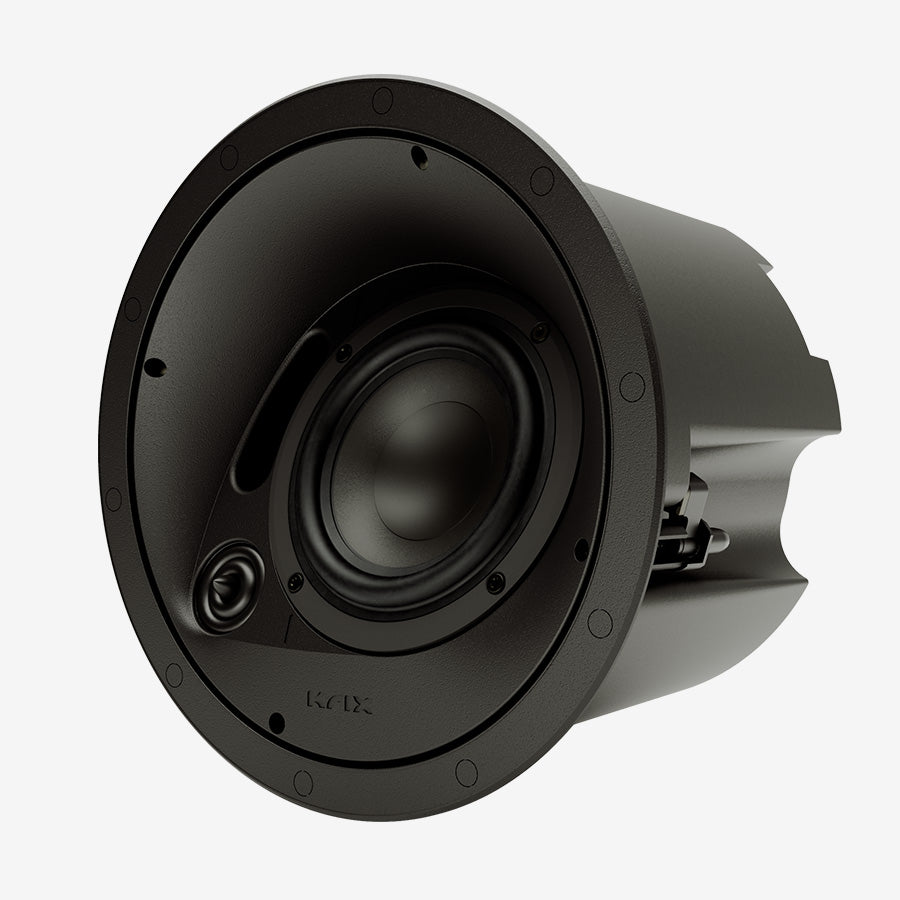

- IC-52 (Atmospherix A20) features a 20-degree angled baffle to direct sound to the primary listening area, reducing reflections for clearer, three-dimensional sound.
- Delivers better music definition, articulate dialogue, and more realistic sound effects in movies.
- Bass driver and tweeter are separately mounted on the front baffle for true hi-fi performance, similar to Krix’s bookshelf speakers.
- Equipped with a 130mm bass driver with a large magnet and copper shorting ring for bass and midrange clarity, plus a 26mm ring radiator for high frequencies.
- Fully-enclosed back box optimizes bass performance, protects from ceiling debris, and reduces sound leakage.
- Tonally balanced with Krix floorstanding and bookshelf speakers, making it perfect for home theatre front/rear speakers or dynamic stereo music sound.

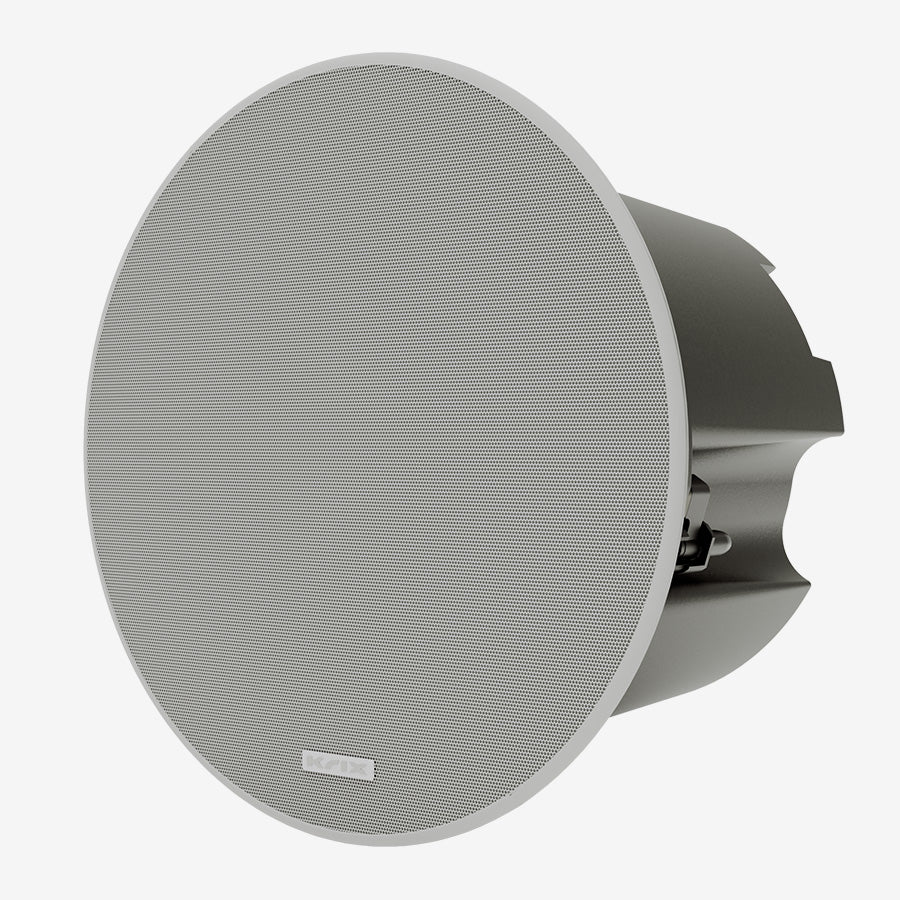

- Slim, paintable, rust-resistant stainless steel grille is magnetically mounted for easy installation, keeping the speaker’s performance hidden from view.
Specifications
Frequency range
45Hz-40kHz in room response
Power handling
20 – 120 Watts RMS recommended amplifier power
Sensitivity
90dB for 2.83 volts at 1 metre
Impedance
Nominally 6 Ohms (minimum 3.6 Ohms)
Configuration
2-way
Enclosure type
Bass reflex, front vented
Low frequency driver
Cast aluminium basket with a nominal 130mm (5″) doped curvilinear paper cone. 30mm (1.2″) vented magnet voice coil wound on high temperature kapton former, with copper shorting ring
High frequency driver
26mm (1”) ring radiator tweeter
Input terminals
Gold plated spring terminals
Cut-out diameter
247mm recommended
Dimensions
295mm diameter x 193mm mounting depth
Weight
2.5kg each
